#326: Control Flow in LangGraph

Last week, we created a simple LangGraph application as our starting point. In this post, we will look at different ways to manage control flow and how nodes can interact with each other. While this sounds even more boring than our last post, here is where things start to get interesting.

To keep the examples fast and understandable, we skip the LLM for this post. Feel free to add one for your examples.

Pass data between nodes

When we can pass data between nodes, we can specialise the work each node does. One node can do research; another node can create a summary. For our minimalistic example, we create a node that creates a random number. We then add another node that tells us the number and checks if the number is even or odd:

import random
from typing import TypedDict
from langgraph.graph import StateGraph, START, END

# 1. Define the State
class State(TypedDict):
    number: int
    result_message: str

# 2. Define the Nodes
def generator_node(state: State):
    """Generates a random number between 1 and 100."""
    print("--- GENERATING Number ---")
    random_num = random.randint(1, 100)
    print(f"The random number is {random_num}")
    return {"number": random_num}

def processor_node(state: State):
    """Determines if the number is even or odd and formats the message."""
    print("--- PROCESSING Number ---")
    num = state["number"]
    parity = "even" if num % 2 == 0 else "odd"
    message = f"You entered {num}, it is {parity}."
    return {"result_message": message}

# 3. Build the Graph
workflow = StateGraph(State)

# Add nodes
workflow.add_node("generator", generator_node)
workflow.add_node("processor", processor_node)

# Connect nodes
workflow.add_edge(START, "generator")
workflow.add_edge("generator", "processor")
workflow.add_edge("processor", END)

# Compile
app = workflow.compile()

# 4. Execute
# We start with an empty dict because the generator creates the first value
final_output = app.invoke({"number": 0, "result_message": ""})

print("\n--- FINAL OUTPUT ---")
print(final_output["result_message"])

When we run our script, we may get an output that looks like this:

$ python pass_data_between_nodes.py

--- GENERATING Number ---
The random number is 83
--- PROCESSING Number ---

--- FINAL OUTPUT ---
You entered 83, it is odd.


$ python pass_data_between_nodes.py

--- GENERATING Number ---
The random number is 48
--- PROCESSING Number ---

--- FINAL OUTPUT ---
You entered 48, it is even.

The graph we created now has two nodes between the special nodes __start__ and __end__:

Add conditions

We can create an if statement like function in our graph called a conditional edge. For that we need a function that makes the decision about what path to choose, and we need nodes we can branch out to. Instead of our direct wiring as we did with the example to pass data between nodes, we use the add_conditional_edges() function that needs the node we want to have as an input, the decision function and a map that points to the next node.

Make sure that the output of the decision function matches the key parameter in the route dictionary, while the value must match the node.

This little example starts with the generator node, then passes the output to the route_decision() function that calls either the even or the odd node:

import random
from typing import TypedDict, Literal
from langgraph.graph import StateGraph, START, END

# 1. Define the State
class State(TypedDict):
    number: int
    result_message: str

# 2. Define the Nodes
def generator_node(state: State):
    """Generates a random number."""
    num = random.randint(1, 100)
    print(f"--- GENERATED: {num} ---")
    return {"number": num}

def even_processor(state: State):
    """Logic specifically for even numbers."""
    return {"result_message": f"You entered {state['number']}, it is even."}

def odd_processor(state: State):
    """Logic specifically for odd numbers."""
    return {"result_message": f"You entered {state['number']}, it is odd."}

# 3. Define the Routing Logic
def route_decision(state: State) -> Literal["even_path", "odd_path"]:
    """Determines which node to visit next."""
    if state["number"] % 2 == 0:
        return "even_path"
    return "odd_path"

# 4. Build the Graph
workflow = StateGraph(State)

# Add Nodes
workflow.add_node("generator", generator_node)
workflow.add_node("even_node", even_processor)
workflow.add_node("odd_node", odd_processor)

# Define Edges
workflow.add_edge(START, "generator")

# Add Conditional Edges
# Arguments: (Source Node, Routing Function, Mapping of function output to Node names)
workflow.add_conditional_edges(
    "generator",
    route_decision,
    {
        "even_path": "even_node",
        "odd_path": "odd_node"
    }
)

# Connect branch ends to the END
workflow.add_edge("even_node", END)
workflow.add_edge("odd_node", END)

# Compile and Run
app = workflow.compile()

final_output = app.invoke({"number": 0, "result_message": ""})

print(f"FINAL RESULT: {final_output['result_message']}")

The output can look like this:

$ python branching_function.py

--- GENERATED: 28 ---
FINAL RESULT: You entered 28, it is even.

$ python branching_function.py

--- GENERATED: 59 ---
FINAL RESULT: You entered 59, it is odd.

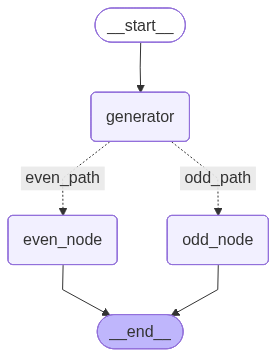

The graphical representation of our workflow looks like this:

Add loops

To create a loop in LangGraph we build on top of the conditional branches. But instead of calling nodes depending on a decision function, we use one of the routing entries in the dictionary to loop back to the node we came from:

import random
from typing import TypedDict, Literal
from langgraph.graph import StateGraph, START, END

# 1. Define the State
class State(TypedDict):
    number: int
    attempts: int
    result_message: str

# 2. Define the Nodes
def generator_node(state: State):
    """Generates a random number and increments attempt counter."""
    num = random.randint(1, 100)
    attempts = state.get("attempts", 0) + 1
    print(f"--- ATTEMPT {attempts}: Generated {num} ---")
    return {"number": num, "attempts": attempts}

def processor_node(state: State):
    """Final node reached only when an even number is found."""
    msg = f"Success! Found even number {state['number']} after {state['attempts']} attempt(s)."
    return {"result_message": msg}

# 3. Define the Looping Logic
def check_if_even(state: State) -> Literal["continue", "loop"]:
    """Check if we should proceed or try again."""
    if state["number"] % 2 == 0:
        return "continue"
    return "loop"

# 4. Build the Graph
workflow = StateGraph(State)

# Add Nodes
workflow.add_node("generator", generator_node)
workflow.add_node("processor", processor_node)

# Define Edges
workflow.add_edge(START, "generator")

# Add the Looping Conditional Edge
workflow.add_conditional_edges(
    "generator",
    check_if_even,
    {
        "continue": "processor", # Path to the next node
        "loop": "generator"      # Path back to itself
    }
)

workflow.add_edge("processor", END)

# Compile and Run
app = workflow.compile()

# Initial state
initial_state = {"number": 0, "attempts": 0, "result_message": ""}
final_output = app.invoke(initial_state)

print("\n--- FINAL RESULT ---")
print(final_output["result_message"])

We can run our script, and it will loop until it finds an even number:

$ python loop.py

--- ATTEMPT 1: Generated 91 ---
--- ATTEMPT 2: Generated 19 ---
--- ATTEMPT 3: Generated 47 ---
--- ATTEMPT 4: Generated 9 ---
--- ATTEMPT 5: Generated 57 ---
--- ATTEMPT 6: Generated 67 ---
--- ATTEMPT 7: Generated 69 ---
--- ATTEMPT 8: Generated 96 ---

--- FINAL RESULT ---
Success! Found even number 96 after 8 attempt(s).

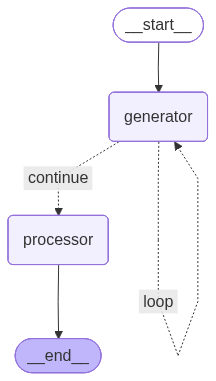

Our graph now has a loop at the generator node:

Next

Whit these 3 basic concepts we can build workflows as complex as we need them. Our state object allows the interactions between the nodes, and the conditional edges do the branching and looping. Since this quickly can get complex, we will next week explore our options to crate graphs from our workflows.
